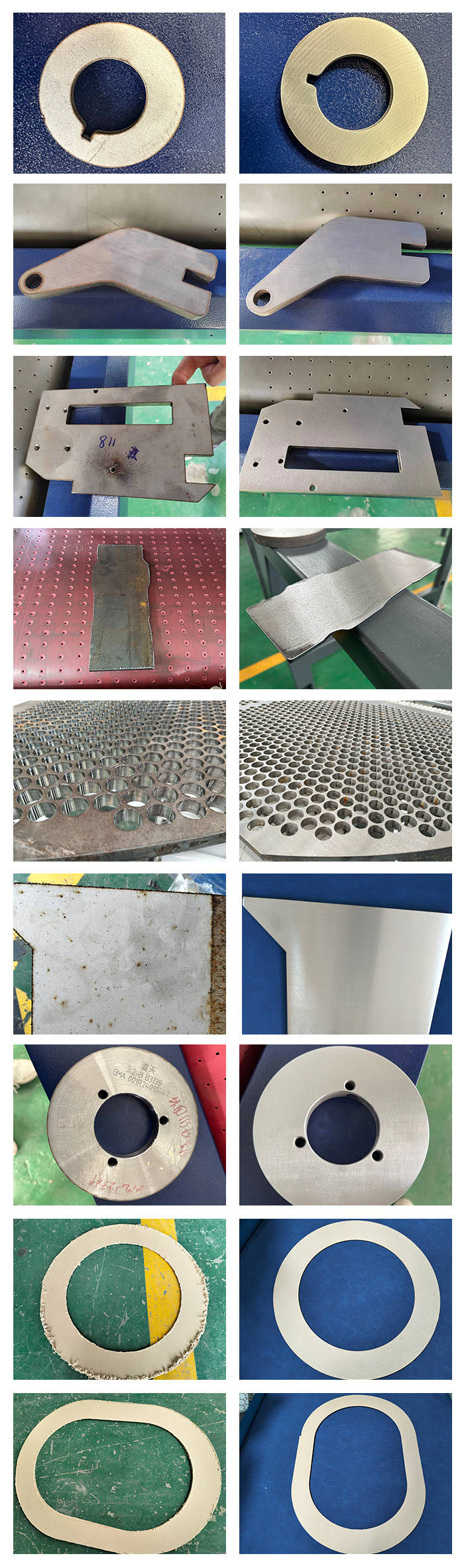

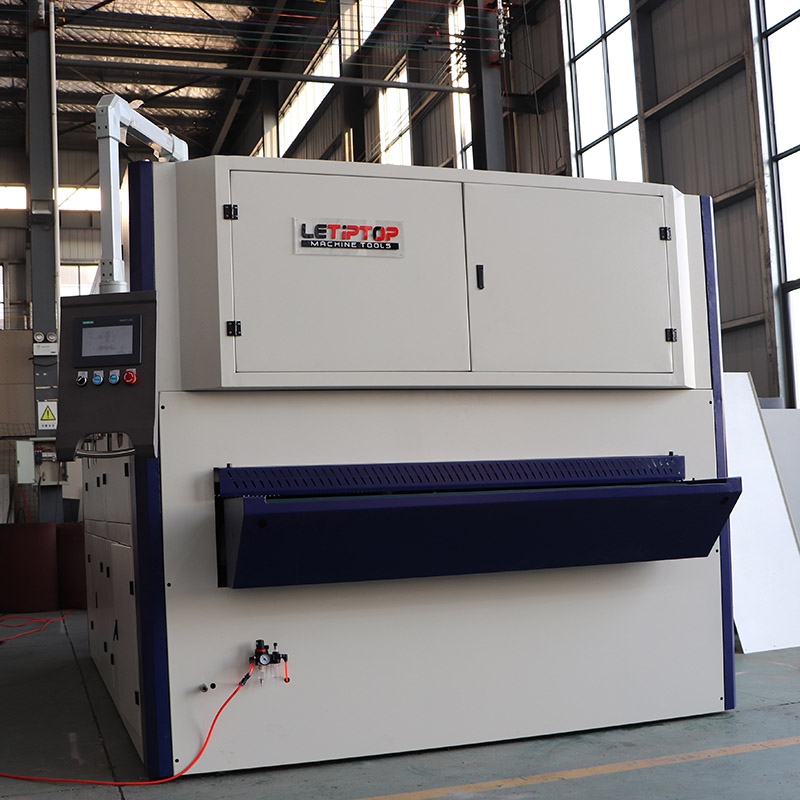

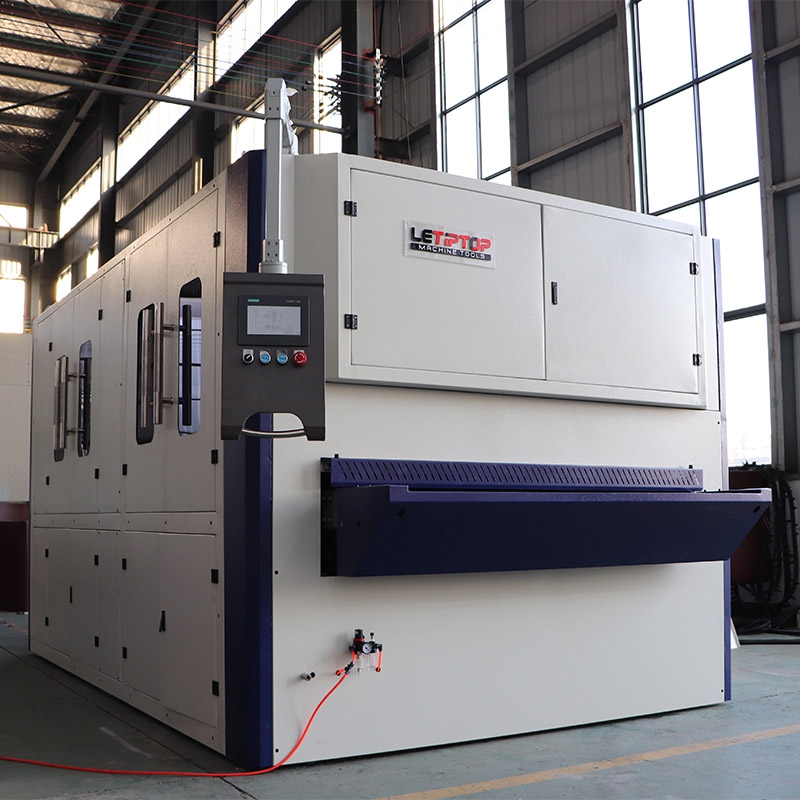

Metal Deburring Machine can be used for burrs removing as well as for rounding the edges of forging, stamping, drilling, welding, cutting, slitting, machining, molding, and casting parts without damaging the main body of the workpiece to achieve the highest possible quality for further processing or finishing. The sharp edges of the metal plates are rounded after removing the burrs, making it safer. This is important in terms of occupational safety and paint adhesion during the post-processing phase.

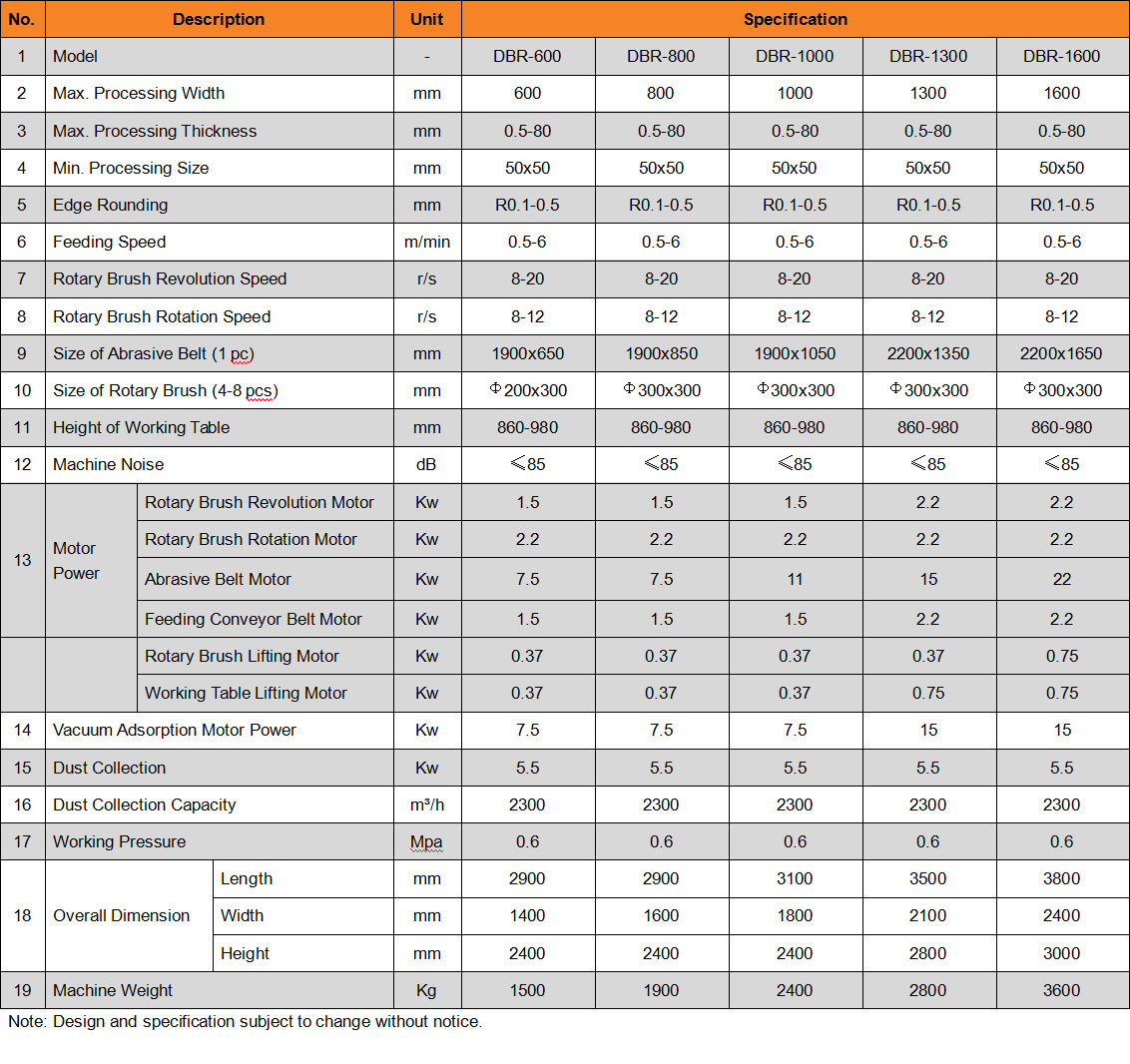

● Processing thickness rang from 0.5-100mm.
● Max. deburring and finishing widths upto 1600mm.
● Efficient processing of small parts 50x50mm.
● High and sustainable deburring quality.
● Dry or wet operation for selection.
● Metal presicion pre-deburring, drawing, polishing, scratching, deburring, chamfering, etc.
● Stainless Steel, Iron plate, Aluminum, Brass, Copper and other alloy steels where finishing is required with deburring operation.

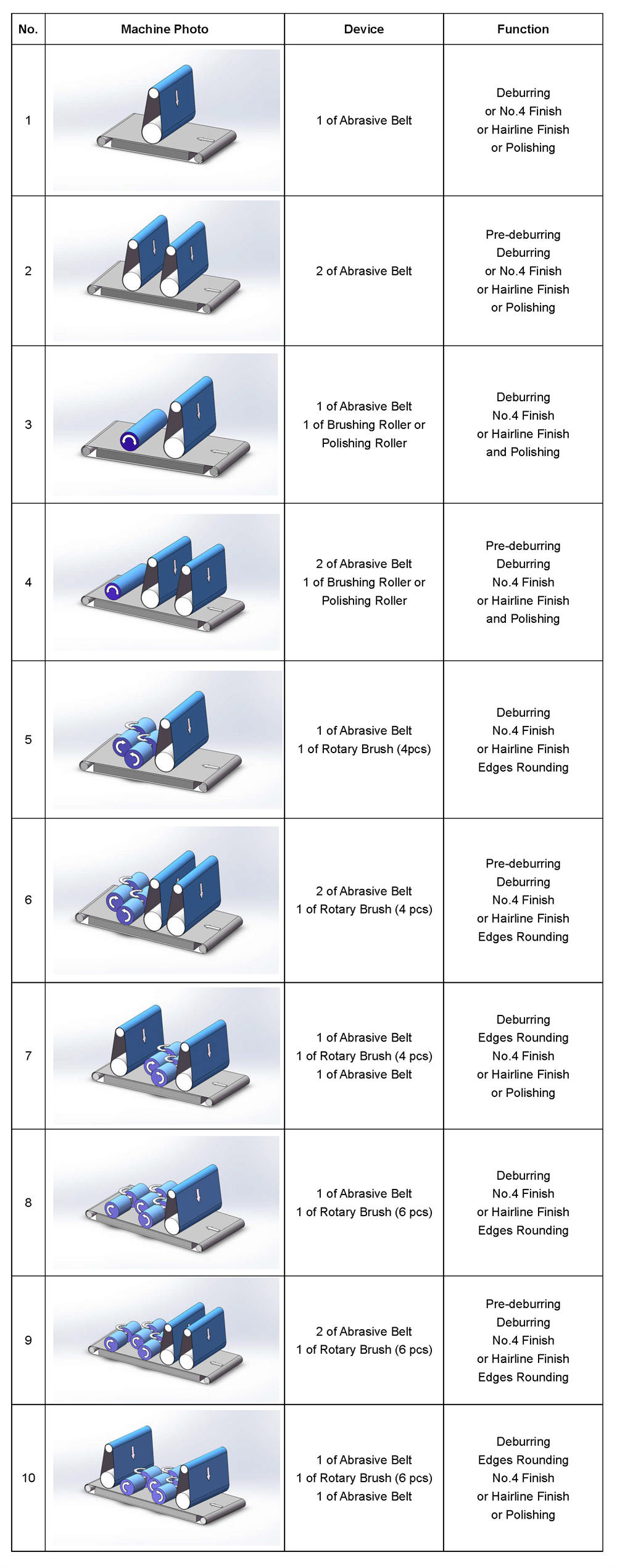

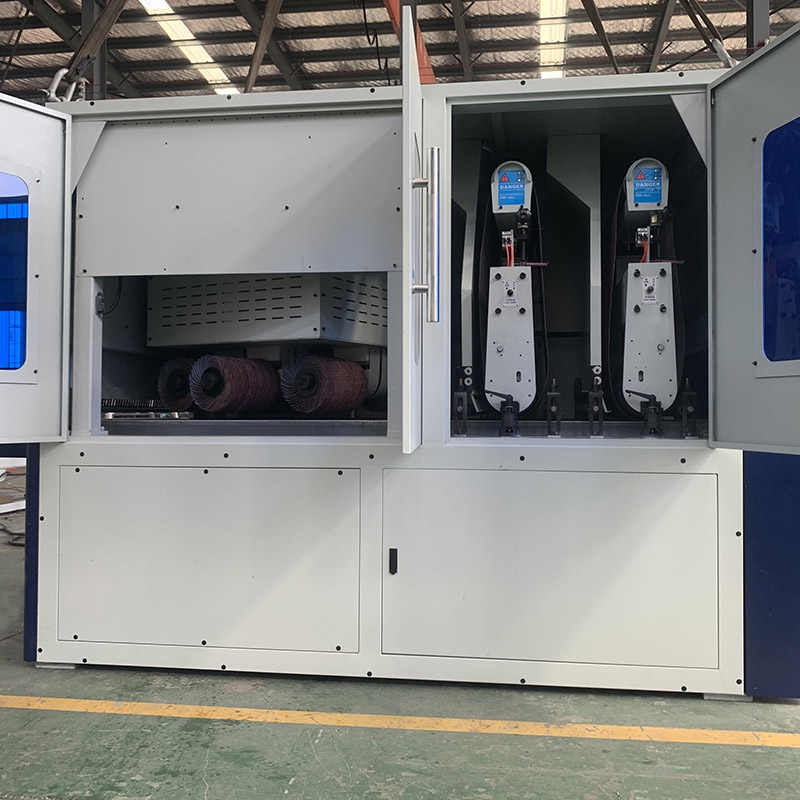

● Wide abrasive belt and universal roller brush single or multiple combination structure.

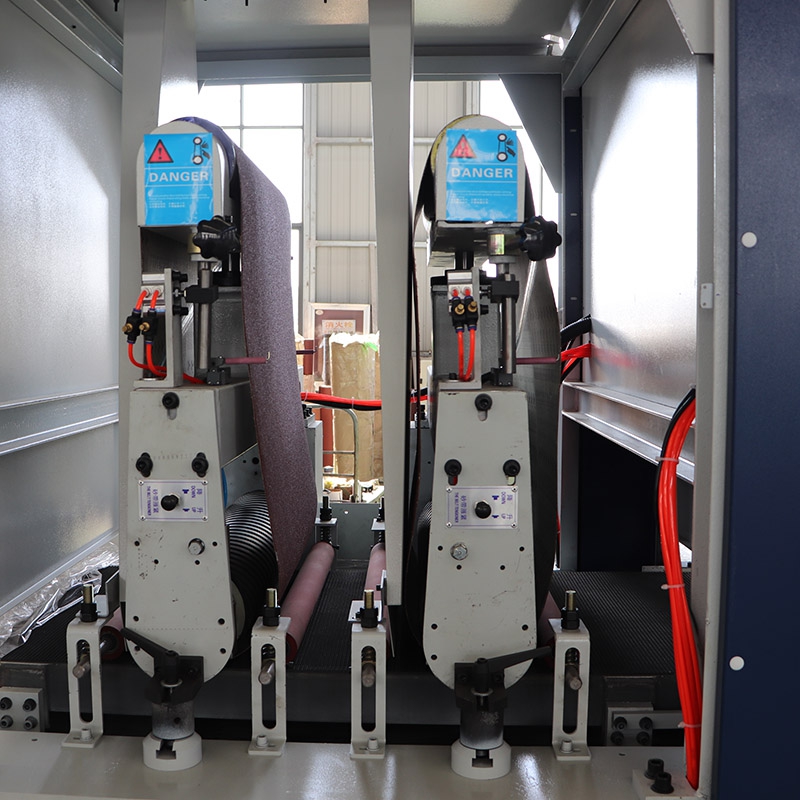

● Abrasive belt grinding station for the big burrs pre-removal, edge rounding and surface finishing at one pass.

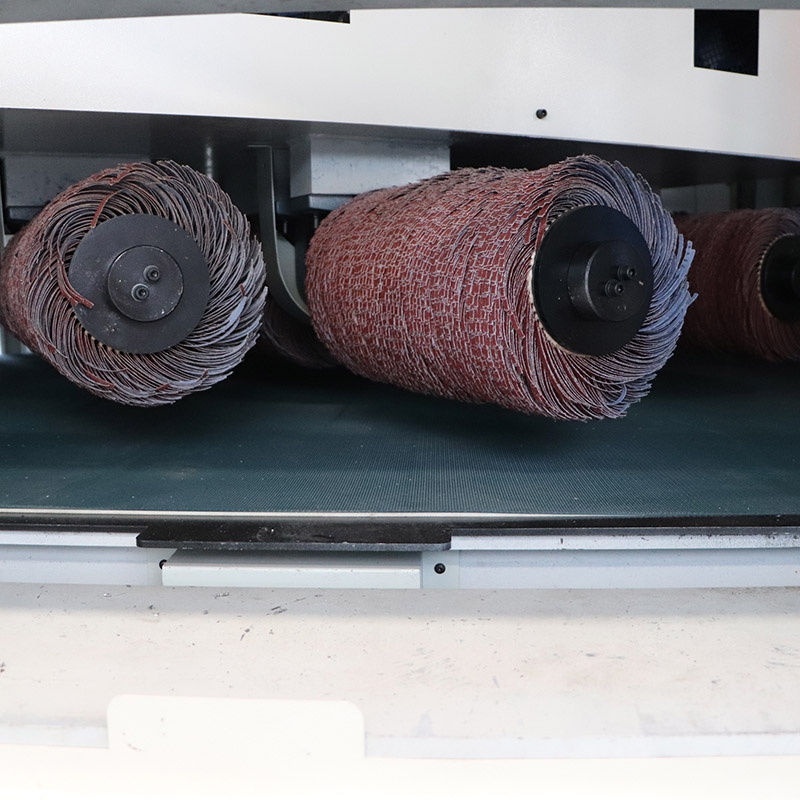

● Rotating brush can do edge rounding on all edges and deeply in holes on plate.
● Perfect edge rounding up to 2 mm radius.
● Each unit can be separately electrically operated and adjusted.
● Pneumatic belt tension - fast abrasive belt change within only a few minutes.

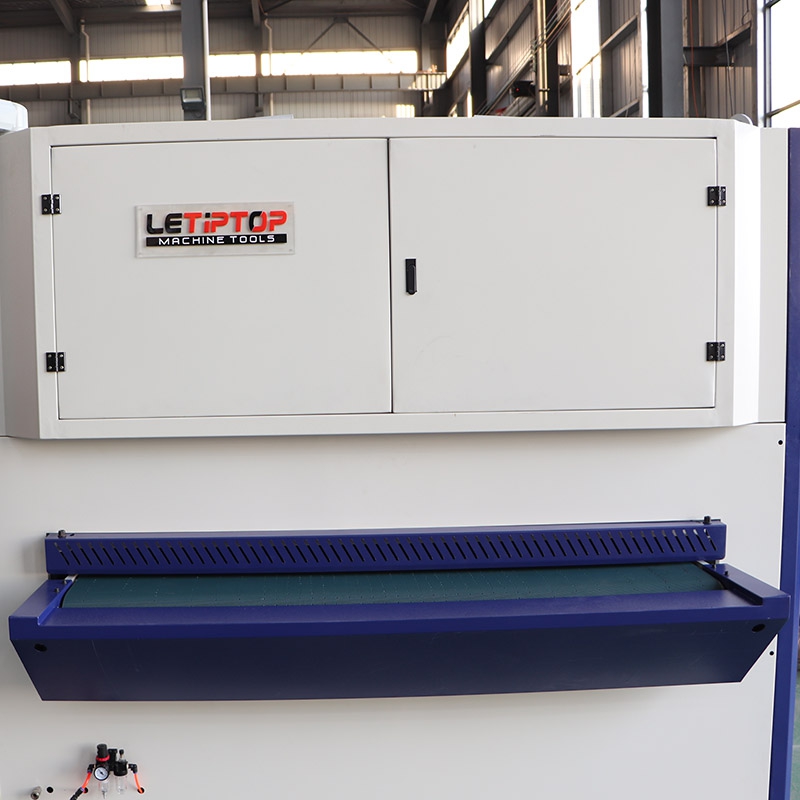

● Vacuum adsorption conveyor feed table with self-cleaning air device for holding the small parts.

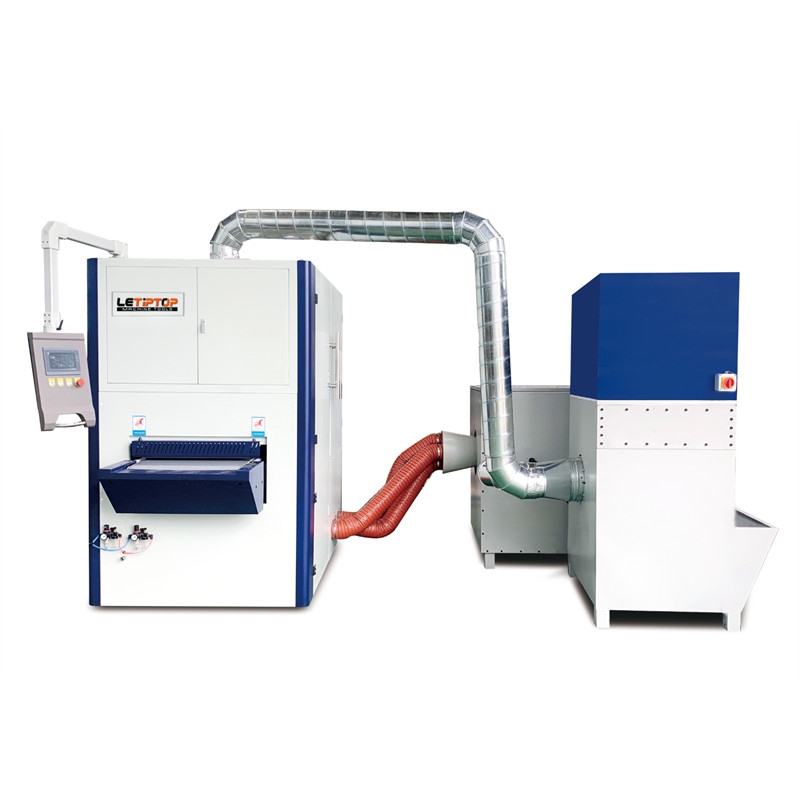

● Dust collector available with capacity 2300m³/h.
● Improved work environment - Reduction of dust, dirt and noise

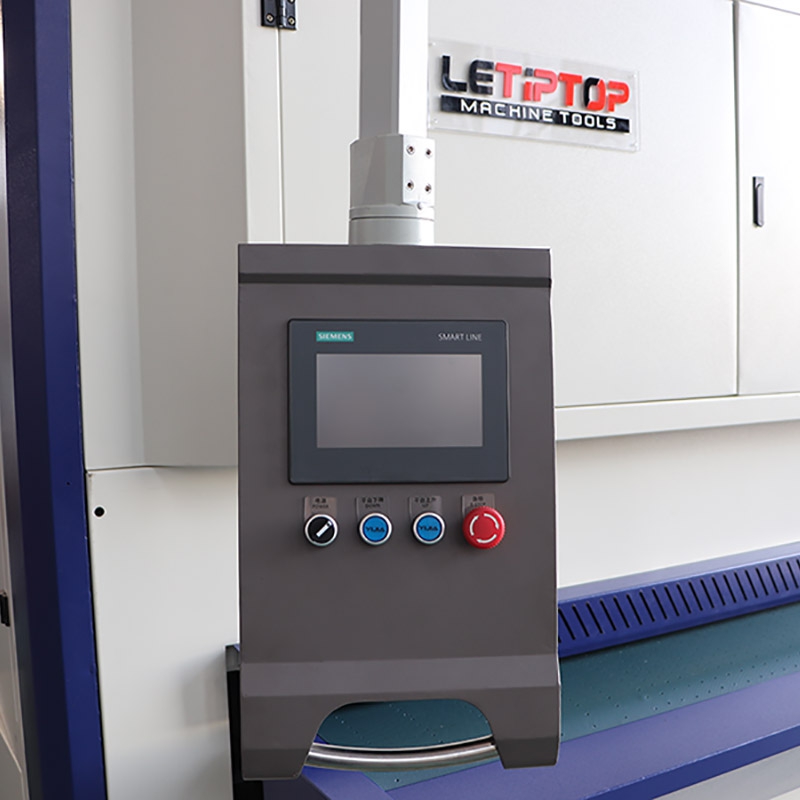

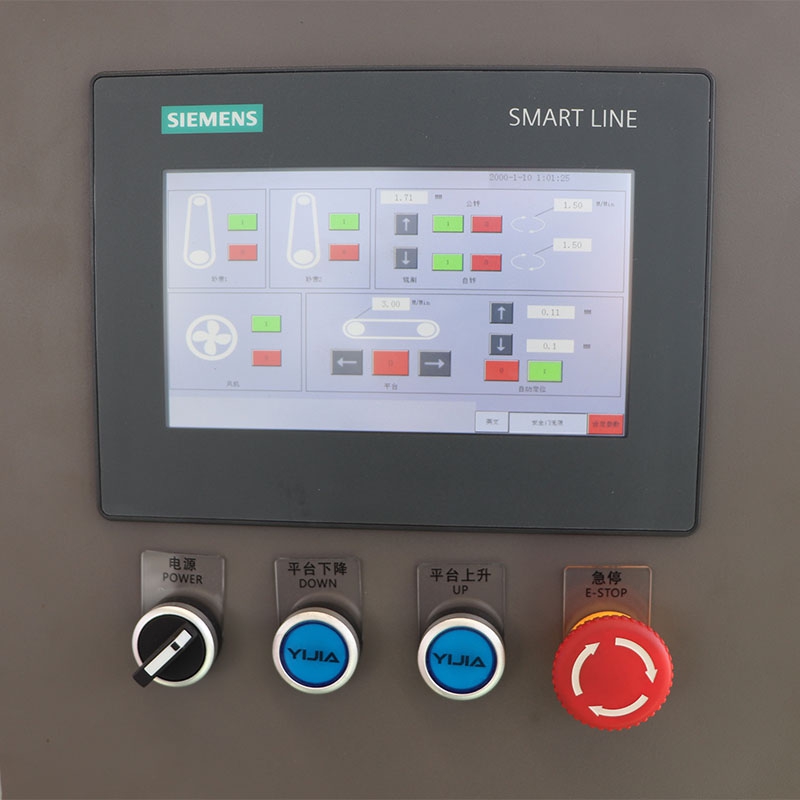

● CNC touch screencan set the processing parameters.
● Polishing unit is available for selection.
● Optionally available: Conveyor Technology; Handling Systems, Automation and Custom Solutions.

Give us a call at +86-13812394816 or email us by tiptop@tiptopmfg.com today for a formal quote on the Metal Deburring Machine and talk to LETIPTOP expert.
